Arctic clouds

Low-level clouds observed on Svalbard

Arctic climate features an abundance of low-level clouds. It is well known from scientific studies in the past that these clouds can significantly affect the radiative energy budget of the atmosphere and at the surface1). For these reasons it can be expected that low-level clouds could play an important role in the currently ongoing warming of the Arctic climate, a process also known as Arctic Amplification.2) However, many aspects of the interaction between clouds and the high-latitude climate are still not fully understood, which is partially due to a lack of reliable, long term cloud observations at high latitudes. Partially for these reasons Arctic clouds are still not optimally represented in numerical circulation models for weather forecasting and climate simulation 3).

At InScAPE fine-scale modeling of Arctic clouds is performed to gain insight into these clouds at process level. Various model configurations are explored to this purpose, focusing on a few key cloud regimes of interest. A central effort is the confrontation of these models with reliable measurements of Arctic clouds and their environment.

Mixed-phase clouds in transforming air masses

Particles of liquid and frozen water in Earth's atmosphere are known as hydrometeors. Both phases can co-exist, a situation referred to as mixed phase clouds. Such clouds are persistently observed in the Arctic. The liquid phase can occur at temperatures that are far below freezing. Such supercooled cloud droplets are often found when few ice condensation nucleii are present in the volume of air. After the formation of supercooled droplets, it takes some time for them to freeze over and become ice crystals. These delicacies make mixed phase clouds difficult to model. This applies not only to large-scale weather and climate models, but also high resolution models such as LES. Hydrometeor sizes often do not exceed the micrometer scale, and are always much smaller than the typical gridspacing in models. As a result, hydrometeors have to be parameterized through a microphysics scheme. Such schemes are not perfect and introduce sensitivity to parametric choices, in both LES experiments and weather and climate model simulations. This motivates further research into this topic.

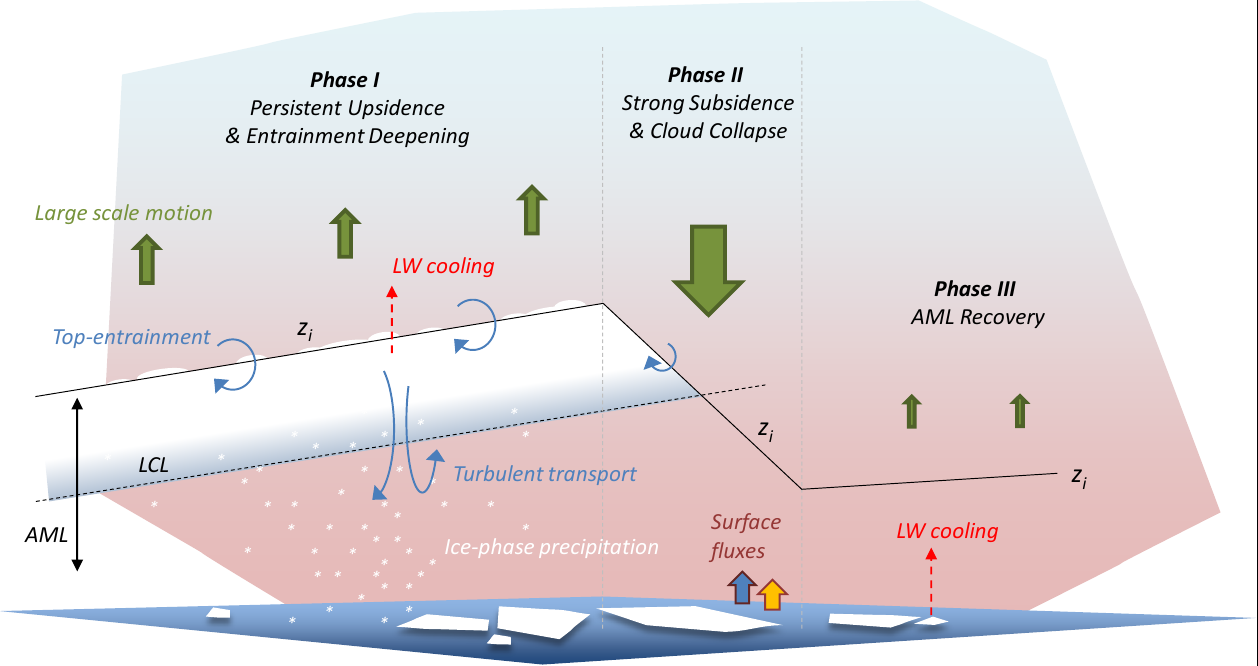

Schematic illustration of the control of subsidence on Arctic mixed-layer evolution. Figure copied from Neggers et al (2019) Mixed phase clouds in the Arctic are typically embedded in a much larger air mass, the origin of which can be far remote, even outside the Arctic. Mixed phase clouds play a key role in how such air masses transform as they move in and out of the Arctic. The presence of liquid hydrometeors in such air masses has been reported to greatly affect the speed at which the sea ice melts in the warming Arctic climate. Accelerated melt has been observed to coincide with liquid cloud presence as part of intrusions of warm and moist air into the Artic. This is linked to the strong impact of liquid clouds on the downwelling long wave radiation at the surface. Another way in which mixed phase clouds interact with the Arctic climate system is through subsidence, which can act as a control on the persistence of mixed-phase cloud systems (see illustration).

High-resolution simulations of mixed-phase clouds can provide insights, acting as a virtual laboratory for studies at process level. To gain confidence in the model, it is of key importance to thoroughly evaluate simulations of mixed-phase clouds against relevant measurements. Achieving this is a key science objective of the InScAPE group.

Related papers:

  • Role of air-mass transformations in exchange between the Arctic and mid-latitudes Pithan et al (Nature, 2018)
  • Local and remote controls on Arctic mixed layer evolution Neggers et al, (2019)
  • Investigating Arctic humidity inversions using balloon-borne measurements and large-eddy simulations Egerer et al. (2021)
  • Aerosol-cloud-turbulence interactions in well-coupled Arctic boundary layers over open water. Chylik et al., in preparation for ACPD, September 2021

Cold air outbreaks

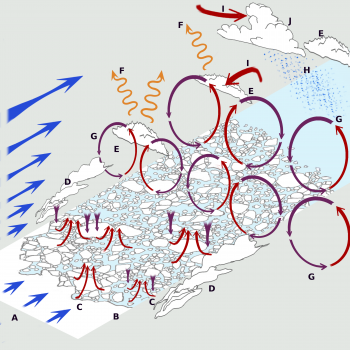

Illustration of a cold-air outbreak over a marginal sea-ice zone — The horizontal and vertical distances are not up to scale. Only the main processes are illustrated: **A**– the advection of cold air, **B**– the edge of ice, **C**– convective plumes, **D**– steam fog , **E**– clouds (stratocumulus type), **F**– outgoing longwave radiation, **G**– convective rolls (the mean wind component not displayed), **H**– precipitation, **I**– cloud entrainment, **J**– clouds (cumulus type) \\ reproduced from //Variability within cold air outbreaks and implications for parametrization// (( Chylik, J. (2017). //Variability within cold air outbreaks and implications for parametrization//. PhD thesis, University of East Anglia )) //

Cold air outbreaks (CAOs) in the Arctic are situations in which a low level mass of cold air initially situated over the sea ice is advected across the ice edge and continues over open water. This process is accompanied by the formation of a convective boundary layer that deepens rapidly, featuring strong surface heat fluxes as well as the formation of low-level mixed-phase clouds. The dynamics in the CAO boundary layer are often complex, as illustrated in Fig. 2. Often these clouds are organized into streets, which at some point downstream of the ice edge tend to break up into bigger individual cells. These cells, often arranged into a spoke-pattern, can appear as either open cells (with a cloud free center) or as closed cells. Recent research has suggested that microphysical processes play an important role in determining the eventual cloudiness in the cell centers.

In the recent ACLOUD field campaign in May 2017, which is part of the ongoing (AC)3 project, some cold air outbreaks where sampled in the Fram Strait west of the Svalbard group of islands. At InScAPE we are currently performing fine-scale model simulations of these CAO cases, making use of ACLOUD measurements to assess their realism.

Related papers:

  • Turbulent transport in the Grey Zone: A large-eddy simulation model intercomparison study of the CONSTRAIN cold air outbreak case De Roode et al. (2019)

Arctic clouds in complex terrain

Scientific research of complex natural phenomena often strives to create a setting which is as simple as possible, in order to enhance the transparency of the problem of interest. The same is true for Arctic clouds. Many studies have focused on relatively homogeneous situations that might be easier to simulate and understand, such as clouds over open water or solid pack ice. Recently, situations of complex geography are getting more attention, such as the interaction of clouds with a surface consisting of broken ice shelves. However, Arctic clouds at locations with complex orography are still understudied. Often these cloud scenes consist of multi layer clouds, and are heavily affected by local secondary flows. To represent these interactions in a fine-scale model simulation is not straightforward.

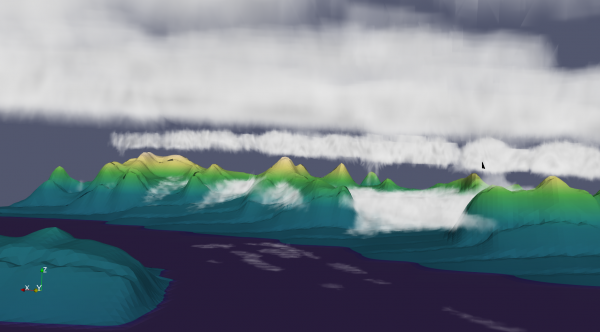

ICON-LEM simulation of multi-layer Arctic clouds in the mountainous area near Ny Aalesund, Svalbard.

At InScAPE we investigate which model configuration yields the most realistic simulations of cloud scenes in areas of complex orography. To this purpose we conduct simulations with the ICON-LEM at the AWIPEV Observatory at Ny Aalesund. A motivation for using ICON-LEM is its capability to perform LES simulations over complex terrain, also profiting from its icosahedral grid.

Related papers:

  • Simulation of mixed-phase clouds with the ICON large-eddy model in the complex Arctic environment around Ny-Ålesund. Schemann and Ebell, 2020

Field campaigns

Various field campaigns have taken place near the Svalbard archipelago in the context of the ongoing (AC)3 research project. Various instrument platforms were involved, including fixed sites (AWIPEV site at Ny Aalesund), ship cruises with the PolarStern research vessel, and flights with the Polar 5 and 6 research aircraft. A key part of the overall research strategy was to combine the benefits of all three platforms. For example, on many research flights the aircraft met with the PolarStern on its journey North towards the ice edge, and during the period in which it was frozen into the solid pack-ice. During some periods all three platforms were situated at the same location at Ny Aalesund, combining all instrumentation. In the modeling of Arctic clouds at InScAPE we focus on these IOP periods, to optimize the availability of relevant data to support the simulations.

More information about the (AC)3 project and its field campaigns in the Arctic can be found on the project website

Related datasets and papers:

  • LES results to accompany measurements at the POLARSTERN Research Vessel during the PASCAL field campaign on 6 June 2017 Neggers (2020a)
  • LES results to accompany measurements at the POLARSTERN Research Vessel during the PASCAL field campaign on 7 June 2017 Neggers (2020b)
  • Glimpsing the ins and outs of the Arctic atmospheric cauldron Wendisch et al. (2020)
  • Case study of a humidity layer above Arctic stratocumulus using balloon-borne turbulence and radiation measurements and large eddy simulations Egerer et al. (2021)
  • The COMBLE campaign: a study of marine boundary-layer clouds in Arctic cold-air outbreaks Geerts et al. (2022)

Large Eddy Simulations

Model codes

At InScAPE the fine-scale simulations of Arctic clouds are performed with two models. The Dutch Atmospheric Large Eddy Simulation model (DALES) 4) is an LES code that has been developed decades ago, and has participated in many scientific model intercomparison and evaluation studies. The Icosahedral Non-hydrostatic (ICON) model was recently developed at both MPI Hamburg and the German Weather Service (DWD), and can be applied at multiple resolutions. While both codes share many features, in particular their capability to perform realistic high-resolution simulations of boundary layer clouds, there are also a few key differences. Apart from numerical differences these mainly concern the spatial homogeneity of surface properties such as orography, and the capability to perform simulations in a nested setting. At InScAPE we aim to use both codes in conjunction, profiting from the benefits of both approaches.

The DALES and ICON models are described in more detail in the overview of models.

Mixed-Phase Microphysics in LES

Perhaps the majority of LES studies so far have focussed on weather scenarios in the subtropics or tropics. The absence of ice particles allows for the use of (typically somewhat simpler) warm microphysics schemes (only liquid water droplets are considered) or with a simple cold microphysics schemes (both liquid droplets and ice droplets are considered). However, neither of these approaches is suitable for arctic conditions where the ice and liquid phase often coexist in clouds. Therefore, with the goal of preparing DALES for simulating low-level Arctic clouds, as a first step we have implemented the cloud microphysics scheme of Seifert&Beheng 5). The full implementation of this two-moment scheme for 3-phase microphysics, which includes multi-species interactions but also interaction with radiative transfer, is required for a realistic representation of for example mixed-phase clouds.

Our full implementation of the Seifert&Beheng scheme uses two-moment description for all the hydrometeors, ice cloud water, and also liquid cloud water. The further enhancement include:

  • cloud droplet number and water number can be part of initial conditions
  • CCN and INP concentration can differ with altitude, not just a constant
  • latent heat of freezing included in the heat budget
  • initial conditions and large-scale forcings derived from large-scale models following the method used in parameterization testbeds 6)

The performance of this implementation has been tested on chosen semi-idealised cold-air outbreak cases. This includes the including M-PACE 7), which was an observed cold-air outbreak case of the coast of Alaska, and ARM 8). However, it is intended to be employed also for the fine simulation of Arctic spring stratocumulus. With the aim to properly represent a varying concentration of aerosols in Arctic, this implementation also allows to define vertical profiles of CCN.

Tsay, S. C., Stamnes, K. and K. Jayaweera (1989). Radiative energy budget in the cloudy and hazy Arctic. Journal of the atmospheric sciences, 46 (7), pp. 1002-1018.
Wendisch M., Yang, P., and Ehrlich, A. (2013). Amplified climate changes in the Arctic: Role of clouds and atmospheric radiation. Sitzungsberichte der Sächsischen Akademie der Wissenschaften zu Leipzig. Mathematisch–Naturwissenschaftliche Klasse, 132 (3), pp. 1-34.
Forbes, R. M., and Ahlgrimm, M. (2014). On the Representation of High-Latitude Boundary Layer Mixed-Phase Cloud in the ECMWF Global Model. Monthly Weather Rev., 142, pp. 3425–3445.
Heus, T., Heerwaarden, C. C. v., and coauthors (2010). Formulation of the Dutch Atmospheric Large-Eddy Simulation (DALES) and overview of its applications. Geoscientific model development, 3 (2), pp. 415-444.
Seifert, A., and K. H. Beheng (2006). A two-moment cloud microphysics parameterization for mixed-phase clouds. Part 1: Model description. Meteorol. Atmos. Phys., 92, pp. 45-66.
Neggers, R. A. J., A. P. Siebesma and T. Heus, 2012: Continuous single-column model evaluation at a permanent meteorological supersite. Bull. Amer. Meteor. Soc., 93, p1389-1400, DOI:10.1175/BAMS-D-11-00162.1
Solomon, A., Morrison, H., Persson, O., Shupe, M. D., and J. W. Bao (2009). Investigation of microphysical parameterizations of snow and ice in Arctic clouds during M-PACE through model-observation comparisons. Monthly Weather Review, 137 (9), pp. 3110-3128.
Klein, S. A., Neggers, R. A. J., and coauthors (2009). Intercomparison of model simulations of mixed-phase clouds observed during the ARM Mixed-Phase Arctic Cloud Experiment. Part I: Single layer cloud. Quart. J. Roy. Meteor. Soc., 135, pp. 979–1002.
