OTT Parsivel 2 at Ny-Ålesund
Mentor:S. Schnitt
Principle
The OTT Parsivel 2 is a laser-based optical system for complete and reliable measurement of all types of precipitation. The size range of measurable liquid precipitation particles is from 0.2 … 8 mm. For solid precipitation particles the size range is from 0.2 … 25 mm. The size range is divided into 32 classes. The measuring range of particle velocity is from 0.2 … 20 m/s and also divided into 32 classes. The precipitation particles are categorized as follows:
- Drizzle
- Drizzle with rain
- Rain
- Rain, drizzle with snow
- Snow
- Snow grains
- Freezing rain
- Hail
Instrument

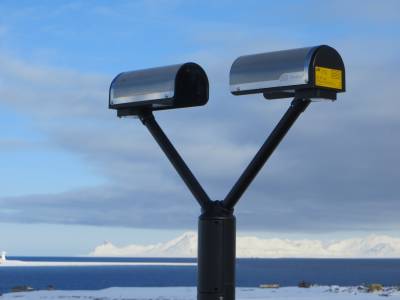

Current setup of OTT Parsivel 2 at AWIPEV Ny-Ålesund, Svalbard on the roof of the atmospheric observatory
Data
- If you are interested in receiving data please contact Kerstin Ebell
History
| Period | Place | Project |
|---|---|---|
| 23 June 2022 - today | AWIPEV Ny-Ålesund, Svalbard | (AC)3 |
| 27 April 2017 - 22 June 2022 | AWIPEV Ny-Ålesund, Svalbard | (AC)3 |
Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 650 nm (visible laser beam, color: red) |
| Output power (peak) | 0.2 mW |
| Measuring surface | W x D 180 x 30 mm |
| Particle size of liquid precipitation | 0.2 … 8 mm |
| Particle size of solid precipitation | 0.2 … 25 mm |
| Particle velocity | 0.2 … 20 m/s |
| Rain rate Minimal intensity | 0.001 mm/h drizzle/rain |
| Rain rate Maximal intensity | 1,200 mm/h |
| Prod. Temporal Resolution | 60 s |
| Rain rate accuracy | ±5 % (liquid) / ±20 % (solid) |
| Dimensions (HxWxD) | 670 x 600 x 114 mm |
| Power supply | 10 … 28V DC, reverse polarity protection |
| Current drawn | Electronics 65 mA at 24 V DC / Heating 2/4 A; 12/24 V DC |
